"GRAIN-SILO" SQUAT 1989 to 1998
GROUND FLOOR - p4(of 4) :
the LIVING-SPACES
< GROUND-FLOOR p2 - LIVING-SPACES <
< GROUND-FLOOR p3 - LIVING-SPACES - cont<
GROUND-FLOOR p4 - LIVING-SPACES - cont
.
the GROUND-FLOOR LIVING-SPACES - cont ... in
process
Ten of the Ground-Floor’s twelve private-spaces are shown below and on pages 2 & 3:
THE SOUTH WING LIVING-SPACES:
ERNST (19## -) [Chambers
5/6 (S)]
FRED (1989 -)
[Chambers 2/3 (S)]
ROLF (19## -) [Chamber 4 (S)]
MILOU (1989 -)
[Chambers 9/10 (S)]
YOURI (1990 -) [Chamber 11 (S)]
THE NORTH WING LIVING-SPACES:
BART (1989 -) [Hall & Chambers
1/2/3 (N)]
CONNIE (1990 -) [Chamber 4 (N)]
DURO (19## -) [Chamber 5 (N)]
SIMONA (1994 -) [Gang-Cell 5 (N) - part of DURO apt]
AREND
(1989 -) [Chambers 8/9/10 (N)]
HUUB (19## -) [Chamber 11 (N)]
|
|
|
SILO- GROUND-FLOOR PLAN (WITH APT NAMES) |
.
the NORTH WING - cont ...
CONNIE’s is a later, one-chamber apt, which extends over the access
gallery and its separate Gang jewellery-workshop as a glazed mezzanine.
DURO's is a single chamber two-thirds-width
space - rather cell-like with its single high window and no mezzanine; however
its Gang store-cell opposite its facade, has been uniquely fitted with a
windowed platform supporting a simple living-space (used by a guest: SIMONA).
AREND’s three-chambered two-thirds-width living-space contains a complex
variety of interlocking functional spaces, including a bakery and a
music-studio.
HUUB's is a single chamber two-thirds-width
space with a single high window lighting a window-fronted mezzanine.
.
CONNIE SPUYBROEK LIVING-SPACE (1990 - ) [Chamber 4 (N)]
Moving into the Silo already one year after the squatting Connie acquired only one of its long narrow transverse chambers.
One end opens onto the quay, the other lifts as a mezzanine over the enclave’s corridor and her shop-like jewellery studio - whose glass facade faces her ‘front-door’ from across the ‘street’ of the Gang. The long space accumulates leisure as it deepens: starting as a bike and (a second) jewellery work-place, changing to a kitchen and then - passing under the small bed-platform supported below the steel rafters in its steel frame - acquiring a yellow boarded floor and becoming a living room heated by a complex stove and opening through a glazed door onto its portion of Quay.
|
|
|
|
|
CONNIE APT: JEWELLERY STUDIO IN GANG
CELL-4 WITH APT MEZZANINE ABOVE # |
CONNIE APT: GANG-ENTRY &
W-SIDE MEZZANINE FROM
BED # |
CONNIE APT: ALL FROM W-SIDE
MEZZANINE |
|
|
|
|
CONNIE APT: ALL FROM GANG-ENTRY |
CONNIE APT: KITCHEN-WALL |
CONNIE APT: FROM SIT-SPACE TO W |
|
|
|
|
|
CONNIE APT: BED |
CONNIE APT: BED PILLAR &
STEPS |
CONNIE
APT: SIT-SPACE FROM BED PLATFORM |
|
|
|
|
|
CONNIE
APT: N-WALL CENTRE TABLE |
CONNIE APT: SIT-SPACE & QUAY DOOR |
CONNIE APT: SIT-SPACE & QUAY DOOR |
|
|
|
|
|
CONNIE APT: SIT-SPACE & QUAY DOOR
|
CONNIE APT: SIT-SPACE MIRROR & STOVE |
CONNIE APT: SIT-SPACE STOVE Connie and her friend Allaert designed and he welded it. Not so much a stove as an elaborate flue which stands over its hearth like a huge candle-snuffer with an open top. The 95cm high steel cone (outlet of some grain hopper) supports in its centre a helix of water pipes connected to an under-floor system feeding two street-scavenged radiators. The ‘expansion-tube’ rising from the hot water outlet pipe and the ‘crown-of-flames’ are Allaert’s college welding exercises. The hearth, a hollow circle of fire-bricks resting on the Silo’s concrete floor, is filled and cleaned through an added door (a common type of Silo scrap, its glass was added). Note the exquisite silver pearl-like bike-padlock fortuitously poised between the crown’s flame-fingers ... in a context of invented objects commonplace acts and things are rich! |
|
||
|
CONNIE APT: EXTERIOR DOOR FROM QUAY TERRACE |
|
|
.
DURO TOOMATO LIVING-SPACE (19## - ) [Chamber 5 (N)]
|
|
|
|

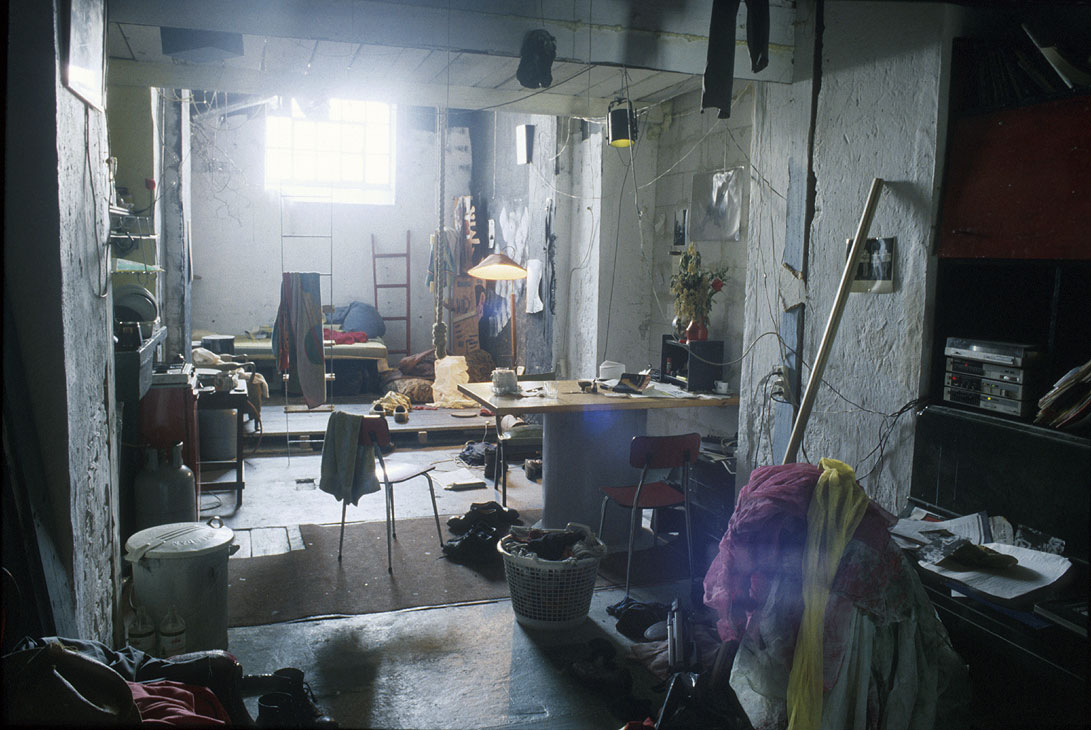

DURO APT: NEAR CENTRE VIEW ALONG THE S-WALL The the four large piers that frame the centre of Duro's chamber once flanked the east-side conveyor-path. Now its once open path is closed with cement-block walls (forming alcoves for a kitchen on the north side and a table on the south), and its floor trough is surfaced with planks (and a fragment of carpet). The sides of the alcoves (and of the jutting portion of the west piers) support the ends of the beams and plank that support the central bridge-like bed platform. At the chamber's east end a shallow planked stage covers the concrete floor, perhaps warmer for bare feet - on it is a spare bed and the bed-platform ladder rises next to it. |
DURO APT: ALL FROM THE GANG ENTRY Three months the far-end bed is in a new position but very little else has changed. The wall-like west side of the bed-platform blocks a view of the upper space. |
DURO APT: S-SIDE FROM EAST END Standing on the raised floor, east of the central bed platform - on its open side. Here lines from a parachute, hung like an overhead canopy, descend like vines. |
|
|
|
|
|
DURO APT: VIEW TO W FROM E-END PLATFORM # |
DURO APT: PARACHUTE OVER E-END PLATFORM We are facing down the chamber from its east end towards the west - above us is a parachute, draped over a pole between the east-end discharge-pipes - from it hang its lines, strangely invading the upper part of the east-end space. |
|
.
SIMONA LEVI LIVING-SPACE (05-1994 - ) [N-Gang Cell 5]Simona Levi, a guest of Duro, built herself a minimal single room "guest-apartment" in the upper half of Duro's store - in the Gang cell opposite his living-space chamber. The sole use of a Gang-cell as a living space.
|
|
|
|
|
SIMONA 'GUEST-APT': IN GANG
CELL-5, DURO'S STORE-SPACE A little 'guest-apt' with no facilities beyond sleeping and sitting; accessed from the Gang up a silo ladder, through a glazed scrap-door in its scrap-windowed facade, and from the outside Dijk through its platform-level window. The apt was designed and built by Simona in May 1994, materials were collected 'slowly' then it was made in 4 days. The apt required only a facade and a wooden support structure; the latter was a 'table' of 4 pillars with 2 'wall-plates' fixed to the side walls, and 3 joists across supporting the floor. The red floor was found in 4 sections, the facade's 'balcony' projection was inherent in its shape; its curved facade wood was as-found; its door and windows were "around". The projecting silo-pipes were cut off by Bart and sealed by Duro with "moose-spray". The ceiling's reflecting-plastic mirrors light into the Gang (an earlier structure in this store was disallowed as it blocked the Gang's light). In the store beneath is staging from Duro's theatre work "Boo Ha Ha". |
SIMONA 'GUEST-APT': VIEW
THROUGH GANG ENTRY-DOOR GLASS (TO APT'S DIJK-WINDOW EXIT)
|

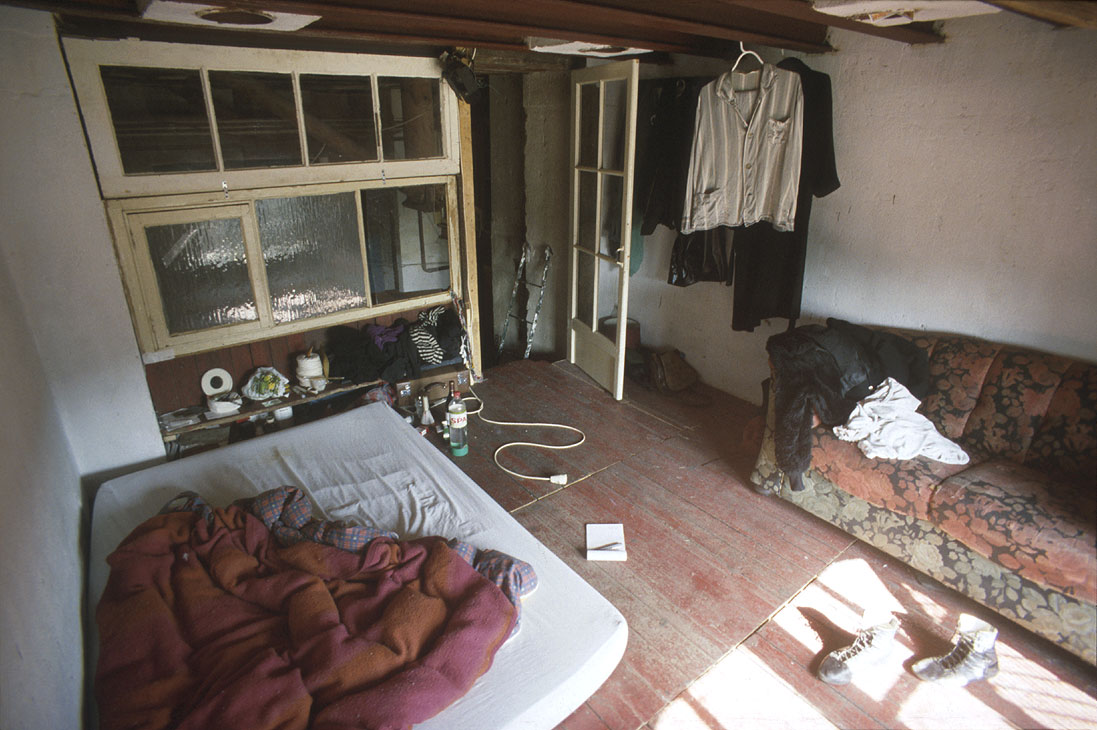

SIMONA 'GUEST-APT': VIEW
TOWARDS FACADE & GANG-ENTRY |
|
|
|
|
|
SIMONA 'GUEST-APT': VIEW OUT
THROUGH ITS DIJK-WINDOW EXIT |
|
.
AREND HEYTING LIVING-SPACE (Winter 1989 - ) [Chambers 8/9/10 (N)]
One of Arend's three chambers is a bakery and ice-creamery with a built-in improvised oven - from here he supplies the Silo (and its visitors) with several types of bread, rolls, cakes (and wonderful ice-cream). His other two chambers are a complex of interlocking spaces concerned with music production, workshop, storage and domesticity. His big living-space has three entries: a door from the Gang, his bakery 'side-door' from the open/unoccupied chamber-7, and a 'back-door' onto the Quay.
|
|
|
|
|
AREND APT: CHAMBER 7 - ENTRY
DOOR TO AREND'S CHAMBER 8 BAKERY Chamber 7 is an access-way to the Quay - in the wooden wall that now fills its east conveyor opening is Arend's 'shop-door' to his bakery and icecreamery - the more 'public' of his three living-space entries. |
AREND APT: CHAMBER 7 - ENTRY
DOOR TO AREND'S CHAMBER 8 BAKERY
|
AREND APT: CHAMBER 8 - ENTRY DOOR
FROM INSIDE THE BAKERY |
|
|
|
|
|
AREND APT: CHAMBER 8 - BAKERY Arend's bread oven is a brick and steel construction, improvised from Silo installations. |
AREND
APT: CHAMBER 9 The far left door opens from the bakery into the first of the two domestic chambers, viewed here from under its east end bed platform [see pic below]. This is mainly a music-making space and facing us is the wall of an electronic music-studio. On the left is the Silo's only example of an oil-drum stove [see next pic]. |
AREND
APT: CHAMBER 9 - STOVES The most primitive type of squat stove - an oil-drum. However this one has developed: fitted with a Silo inspection-door(?) and bolted to a chimney of Silo chutes and pipes. Behind it stands a little manufactured [oil?] stove which drapes its chimney of scrapped air-con tubing along the big stove's rigid outlet pipe [see previous pic]. |
|
|
|
|
|
AREND
APT: CHAMBER 9 - MUSIC-STUDIO WALL & DOOR |
AREND
APT: CHAMBER 9 - MUSIC-STUDIO Inside the music-studio. The ceiling tent catches dust and the lowered space needs less heating and helps sound quality. |
AREND

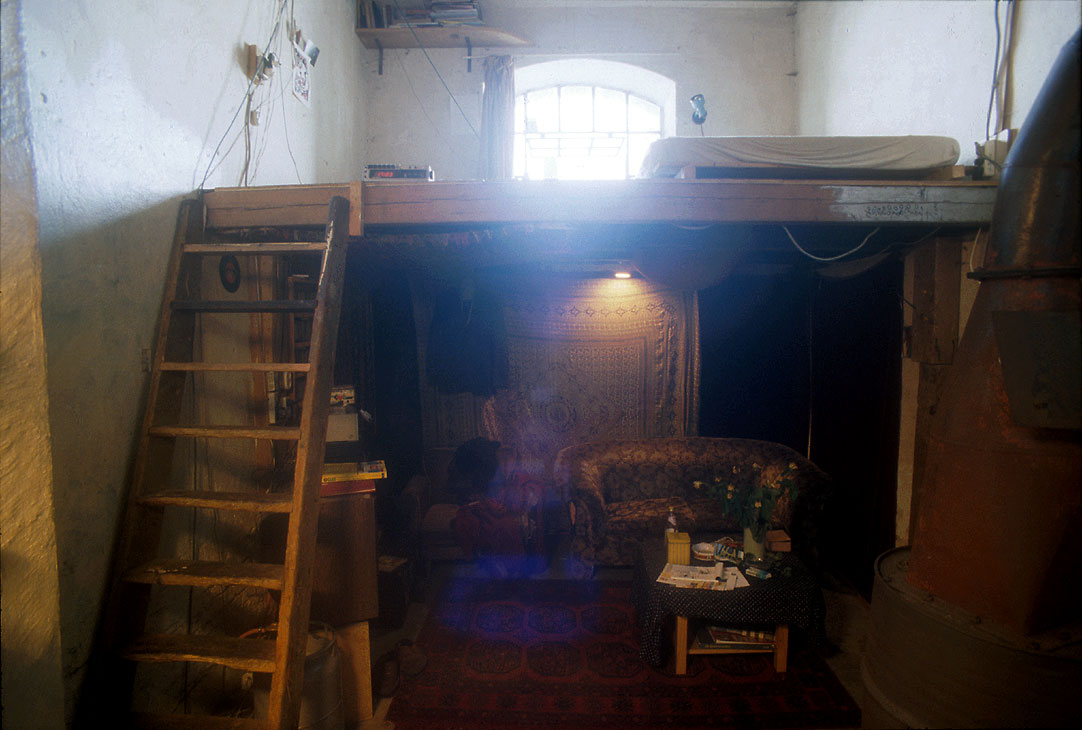

APT: CHAMBER 9 - BED-PLATFORM & SITTING-PLACE |
|
|
|
|
|
AREND
APT: CHAMBER 9 Across the chamber's windowed east end is the bed-platform; on our left the music-studio's door is open; ahead is a curtained entry to the second domestic space, chamber 10. |
AREND
APT: CHAMBER 10 - FROM QUAY DOOR TO GANG Arend's third chamber, his second domestic space. Under a glazed platform at the chamber's far end is an open door into the Gang. |
AREND
APT: CHAMBER 10 - FROM QUAY DOOR TO GANG The second domestic chamber from near its Quay door. The open door at its far end reveals the store-space on the Gang's west side. |
|
|
|
|
AREND
APT: CHAMBER 10 - FROM THE CHAMBER 9 ENTRY TO THE QUAY DOOR |
AREND
APT: CHAMBER 10 - ENTRY FROM QUAY TERRACE |
|
.
HUUB BONGERS APT (199# - ) [Chamber 11 (N)]
|
|
|
|
|
HUUB
APT: CHAMBER 11 -
NORTH FACADE FROM OPEN-CHAMBER 12 The originator of this living-space blocked the wall's east conveyor-path gap with a wooden wall faced on both sides with street-found carpet and, on its outside, with orange plastic ?sacks. |
HUUB
APT: CHAMBER 11 - GANG FACADE The originator of this living-space built his apt's facade from thick wooden planks and a domestic scrap 'front-door'. Huub's additions are its covering of street-found carpet; the door's dynamic wallpaper and accompanying ironic chute 'column'; a Bauhaus exhibition poster 'window view-in' (Huub is a designer) with its accompanying unruly geometric chutes. A strange ensemble! |
HUUB
APT: CHAMBER 11 - ENTRY FROM GANG & WORK-AREA |
|
|
|
|
|
HUUB
APT: CHAMBER 11 - ENTRY FROM GANG & WORK-AREA |
HUUB
APT: CHAMBER 11 - E-END UNDER MEZZANINE Beside and under the table are thick white painted planks blocking the east conveyor's wall-gap and floor-trough. |

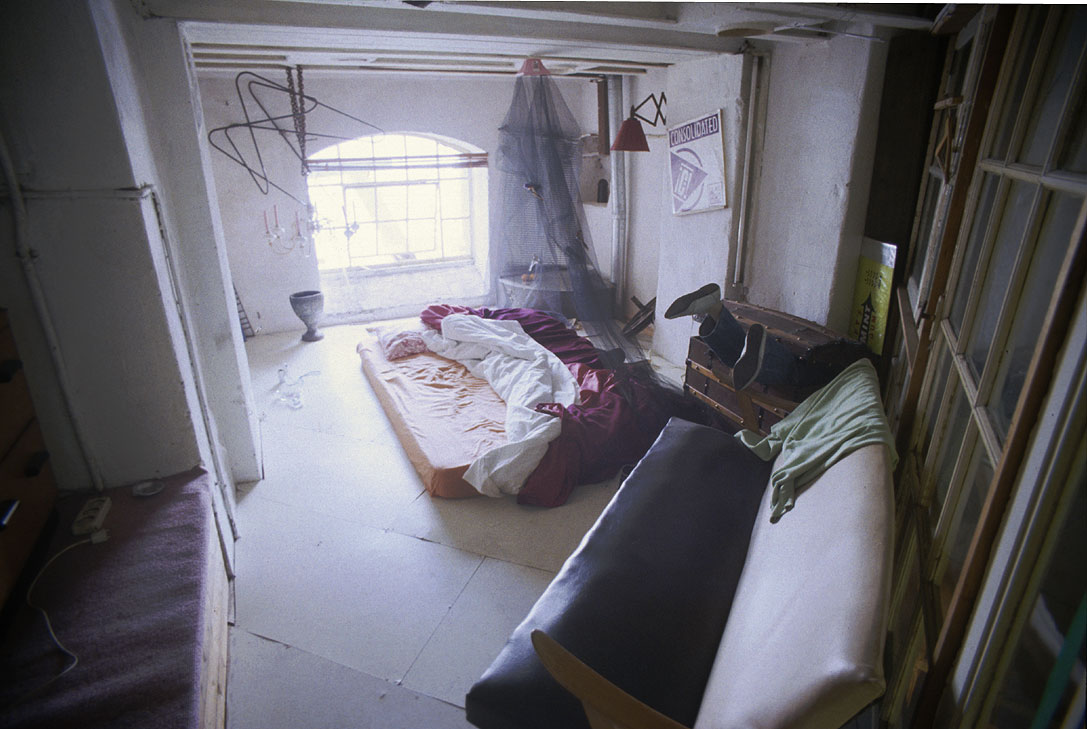

HUUB
APT: CHAMBER 11 - MEZZANINE |
.
